The Frigidaire 30" Gas Range with Quick Boil allows you to experience faster boil times with the 17,000 BTU Quick Boil burner. Cleanup is made easy with Delay Clean and One-Touch Self Clean options. Plus, the Store-More(R) Storage Drawer offers extra space to store cookwDimensions and Volume
Height 47"
Width 29 7/8"
Depth 25 3/4"
Depth With Door 90? Open 46 9/16"
Oven Interior Height 18 5/8"
Oven Interior Width 24 3/8"
Oven Interior Depth19 1/8"
Oven Capacity 5 Cu. Ft. are.

FRIGIDAIRE 30" GAS RANGE WHITE

Product Dimensions
Height (Max.) 47"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Store-More(TM) Storage Drawer
With the Store-More(TM) Storage Drawer,
you will have extra space to store your
cookware.
Delay Clean
Set the oven to begin cleaning on
your schedule.
Available in:
Quick Bake Convection
Bake faster and more evenly with
Quick Bake Convection.
Continuous Corner-to-
Corner Grates
Move heavy pots & pans without lifting
with continuous corner-to-corner grates.
Quick Clean
Quickly clean your oven in 2 hours
with our quick self-clean cycle.
Quick Boil
Get meals on the table faster with our
17,000 BTU burner -- water boils faster
than the traditional setting.
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
BTU
17,000
5,000
9,500
12,000
9,500
Freestanding Ranges
FFGF3056T D / S / W/ B
Stainless
(S)
White
(W)
Black
(B)
Black
Stainless
(D)
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Frigidaire Baseline
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Quick Bake Convection
Add-a-Minute
Delay Start
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-Off
Oven Lock-Out
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Optional Accessories
LP Gas Conversion Kit
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select(R) Controls
Black Porcelain ( D / S ),
Color-Coordinated Porcelain
( W / B )
Yes
Continuous Cast Iron with
Black Matte Finish
Extra-Large
Black Stainless Steel ( D ),
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Black Stainless Steel ( D ),
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Black ( D / S ),
Color-Coordinated ( W / B )
Quick Bake Convection
Self Clean
Storage
Yes
Variable
Yes
Yes
Yes
Yes
2, 3 Hours
Yes
Yes
17,000
5,000
9,500
12,000
9,500
5.0
1
Yes
2 Standard
Even Baking Technology
Vari-Broil(TM) Hi / Lo
18,000 / 13,500
PN # GRLP4
18-5/8" x 24-3/8" x 19-1/8"
Middle Bottom Rear
Right Bottom Rear
120V / 60 Hz / 5A
5
195 Lbs.
FFGF3056T 05/17 (C) 2017 Electrolux Home Products, Inc.
Freestanding Ranges
FFGF3056T D / S / W/ B 30" Gas
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90?
47"
29-7/8"
29-1/4"
46-9/16"
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications
subject to change.
30" min.
13"
max.
25"
Minimum
clearance (A)
required to
nearest
combustible
wall on
either side
of range
above 36"
height
30"
CL
36"
stand.
Wall
15"
11 1/2"
Recommended area for through-the-floor
connection of pipe stub and shutoff valve
8"
Recommended area for 120V outlet on rear of
wall and area for through-the-wall connection
of pipe stub and shutoff valve
23"
18"
min.
24"
10 1/2"
2"
18"
min.
Front
29 7/8"
48 1/2"
max.
46 5/8"
Gas inlet location
(right bottom rear*)
Power cord location
(left bottom rear*)
*w hen viewed from front
Side
25 3/4"
29 1/4"
Frigidaire Baseline
30"
min.*
Based on Largest Minimum
Burner Output Rating Clearance
on Cooking Surface Required
9,500 BTU or less 2"
10,000 - 16,999 BTU 3"
17,000 BTU or greater 5"
* Min. distance from cooking surface
to underside of overhead cabinetry
36"
(Adjustable
to +-1/8")
Note: Overall
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model's product
specifications for
actual dimensions.
USA o 10200 David Taylor Drive o Charlotte, NC 28262 o 1-800-FRIGIDAIRE o frigidaire.com
CANADA o 5855 Terry Fox Way o Mississauga, ON L5V 3E4 o 1-800-265-8352 o frigidaire.ca
FFGF3056T 05/17 (C) 2017 Electrolux Home Products, Inc
Freestanding Ranges
FFGF3056T D / S / W/ B 30" Gas
Freestanding Range Specifications
o Product Shipping Weight (approx.) - 195 Lbs.
o Voltage Rating - 120V / 60 Hz / 5 Amps
o Amps @ 120 Volts = 5 Amps
o Always consult local and national electric and gas codes.
o Make sure wall coverings around range can withstand heat generated
by range.
o Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90? F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
o Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
o Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
o Range ships with 3/4" factory regulator.
o Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
o Floor beneath range MUST be solid and level.
o Overhead cabinetry should not exceed a 13" maximum depth.
o Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
o Range can be installed flush to wall with 0" minimum rear clearance.
o Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
o To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
o Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
o LP Gas Conversion Kit - (PN # GRLP4).

FRIGIDAIRE 30" S/STEEL GAS RANGE

Features Make healthier and delicious meals with Air Fry Deliver all of the flavor and none of the guilt. Air Fry allows you to make healthier and delicious meals for the entire family – right in your oven. The first range on the market to include Air Fry. Faster, more even baking results with True Convection Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven. Quick Boil Burner Get meals on the table faster with our powerful 18,000 BTU burner. Fast Steam Cleaning Option A 30-minute light oven cleaning that's chemical-free, odor-free, and fast. Quick Preheat Start baking in just a few minutes with Quick Preheat 1 Flexible Five Burner Cooktop Get the ultimate cooking flexibility. This powerful gas cooktop that has five burners designed to handle all of your cooking needs. One-Touch Self Clean Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles. Smudge-Proof® Black Stainless Steel Practical has never looked so stylish with Smudge-Proof® Black Stainless Steel, a beautiful new finish with an easy-to-clean fingerprint resistant surface. Optional ReadyCook™ Air Fry Tray Allows you to achieve perfectly crispy and delicious Air Fry results, faster than nonstick bakeware. 2 Dimensions and Volume Height: 48 1/2" Width: 30" Depth: 25 3/4" Depth With Door 90° Open: 46 5/8" Depth With Handle: 29 1/4" Oven Interior Height: 18 5/8" Oven Interior Width: 24 3/8" Oven Interior Depth: 19 1/8" Oven Capacity: 5 Cu. Ft. Display Control Location: Rear Display Interface Color: White Display Type: Membrane Cooktop Performance Right Front Element Burner: 18,000 BTU Right Rear Element Burner: 5,000 BTU Left Front Element Burner: 9,500 BTU Left Rear Element Burner: 14,000 BTU Center Element Burner: 10,000 BTU Cooking Controls Add A Min: Yes Air Fry: Yes Bake: Yes Broil: Yes Cancel: Yes Clock: Yes Convection Bake: Yes Convection Convert: Yes Convection Roast: Yes Delay Clean: Yes Delay Start: Yes Door Lock: Yes Fast Preheat: Yes Keep Warm: Yes Kitchen Timer: Yes Off: Yes Preheat: Yes Probe: Yes Self Clean: Yes Steam Clean: Yes Temperature Display: Yes Electrical Specifications Minimum Circuit Required: 5 Amps Voltage Rating: 120 V Oven Bake Element: 18,000 BTU Bake System: Yes Broil System: Yes Convection Element: 900 Watts Number of Rack Positions: 6 Rack Position Type: Nickel Ladder Rack Type 1 Quantity: 3 Window Type: Extra Large Visual Installation Adjustable Leveling Legs: Yes Cooktop Cooking Surface Type: Gas Grate Material: Cast Iron Grate Quantity: 3 Grate Style: Continuous Griddle Included: Yes Exterior Cooktop Finish: Color Coordinated Drawer Finish: Color Coordinated Exterior Finish: Smudge-Proof® Black Stainless Steel Handle Color: Color Coordinated Knob Color: Color Coordinated Certifications and Approvals Star-K Certification: Yes CSA Listed: Yes Drawer Drawer Type: Storage

Make healthier and delicious meals with Air Fry

Deliver all of the flavor and none of the guilt. Air Fry allows you to make healthier and delicious meals for the entire family - right in your oven. The first range on the market to include Air Fry.
Faster, more even baking results with True Convection

Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.
Quick Boil Burner

Get meals on the table faster with our powerful 18,000 BTU burner.



Fast Steam Cleaning Option

A 30-minute light oven cleaning that's chemical-free, odor-free, and fast.
Quick Preheat
Start baking in just a few minutes with Quick Preheat 1
Flexible Five Burner Cooktop

Get the ultimate cooking flexibility. This powerful gas cooktop that has five burners designed to handle all of your cooking needs.


Height Width
48 1/2" 30"


Depth
25 3/4"


Depth With Door 90? Open
46
5/8"

Color: White
Unit Dimensions: 40.5 H x 23.5 W x 25.75 D

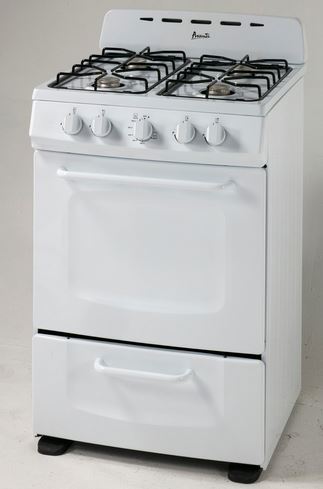

Freestanding 24" Gas Range
